LTSDS Tower Deployment
2022 – Downhole Logging
Summary:
Downhole Logging of Plugged Wellheads prior to Removal
Client:
Chevron
Project:
Multi-Year Program of Wellhead Decommissioning
Location:
Multiple Fields, Gulf of Thailand
Main Assets Deployed:
OSV “Beacon Altair” – Triton XLR Work Class and SeaEye Lynx Inspection Class ROV Systems – LTSDS (Logging Tower Subsea Deployment System)
Scope of Work
Pre-removal survey and recording of internal wellhead condition for integrity of plugs and condition of casing and annulus, using Camera Tool String, MTD (Magnetic Thickness Detector, and MPNNS (Memory Pulsed Neutron-Neutron System) launched from a Beacon Offshore developed LTSDS (Logging Tower Subsea Deployment System) providing a fixed and weather independent launching point for the inspection spread.
The LTSDS features:
- Turret design and stable base
- Deployed by vessel crane and rigging released by WROV
- Smart hub drive system with speed control, tension and line-out meter
- Powered by control umbilical or directly from WROV
- Approximate in-water weight 1.8 ton
Downhole Cleaning Operation

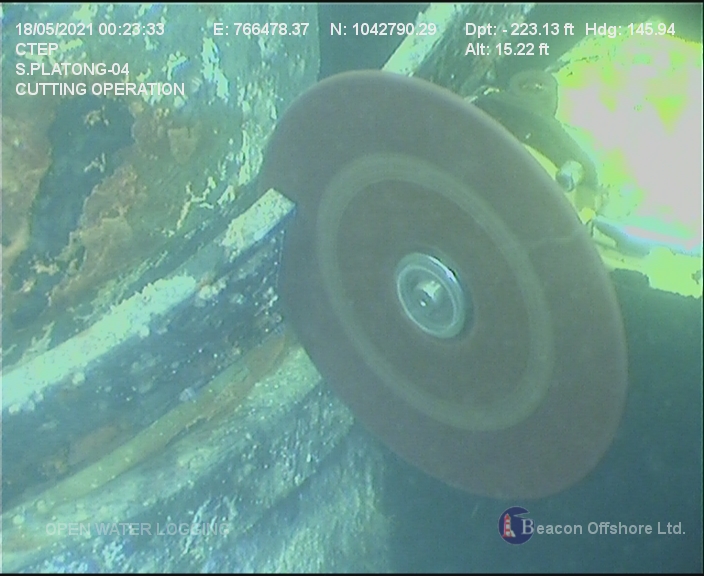

Downhole Cutting Operation
